HAPPYMODEL ELRS ES24TX 2.4GHz ExpressLRS Micro TX Module
₹3,499.00
Out of stock

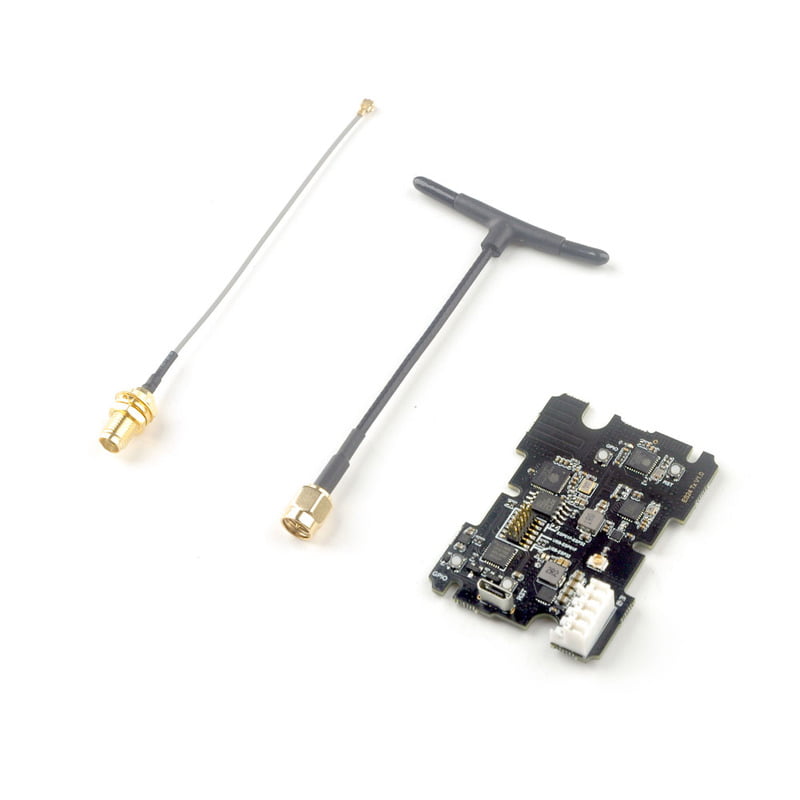

This Micro TX is designed by Happymodel and based on the open-source ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. Its main hardware architecture is ESP32, ESP8285, and the SX1280 RF chip. The ES24TX module is a complete solution that is plug and play and already pre-loaded with Expresslrs firmware.
Product Details
Specifications
- MCU:ESP32(main),ESP8285 (aux, as espbackpack)
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- Dimension: 55.5mm*39.5mm*8mm
- RF Output Power: 10dBm~24dBm
- Weight: 9.5g (without antenna)
- Power supply voltage: 5v~10v
- Regulatory Domain: ISM2400
- RF chip:SX1280IMLTRT
- JR standard 5pin socket
- Antenna gain:1.87dBi
